Model:-80 Watts
The 80 Watt Amplifier by SuperSync is built to power medium-sized areas like school corridors, staff rooms, or small assembly halls. It delivers strong, clear audio output and supports 100V line speakers, making it ideal for announcements, bell tones, or devotional music. Compatible with automation systems like WB-06 and SB-204, it ensures smooth daily scheduling and effortless integration. Its compact design, rugged build, and efficient sound handling make it a trusted choice for schools, temples, and institutions. With plug-and-play connectivity, this amplifier provides balanced, dependable sound performance with USB, SD card, FM tuner, and remote-control support.
| Specification | Details |
|---|---|
| Power | 80W Max, 60W RMS @ 10% THD |
| Supply | AC: 220–250V • DC: 12V (Battery) |
| Inputs | 5 Mic, 2 AUX |
| Tone Control | Bass & Treble ±10dB |
| Speaker Out | 4Ω, 8Ω, 16Ω, 100V |
| Freq. Range | 50Hz – 15kHz ±3dB |
| FM Tuner | 88MHz – 108MHz |
| S/N Ratio | ≥ 60dB |
| Pre-Out | 200mV / 1kΩ |
| Media | USB, SD/MMC, FM, Remote Control |
| Size (mm) | 402 (W) × 304 (D) × 129 (H) |
| Weight | 9.2 Kg Approx. |

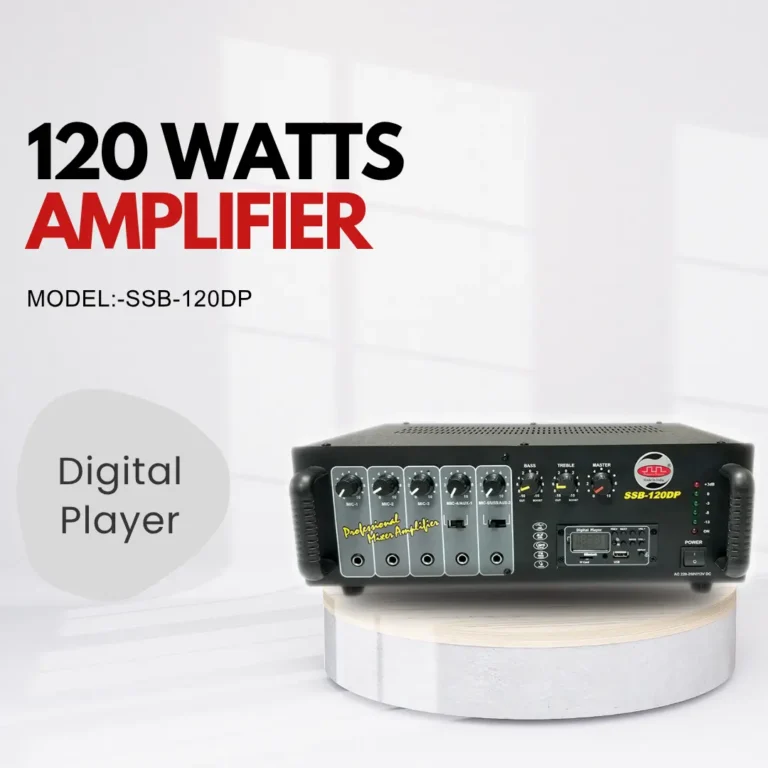

Model:-120 Watts
SuperSync’s 120-Watt Amplifier is designed for large classrooms, prayer halls, or institutional buildings where robust and crisp audio delivery is crucial. With support for 100V line output, it easily powers multiple speakers over long distances. The amplifier features USB, SD card, FM tuner, and remote control — perfect for daily announcements, bell tones, or devotional tracks. It integrates seamlessly with automatic systems like SB-204 or WB-06, making it a dependable solution for schools and religious spaces. With 5 mic and 2 AUX inputs, clear sound, and instant DC backup support, this unit brings reliability and versatility in one powerful body.
| Specification | Details |
|---|---|
| Power | 120W RMS @ 10% THD |
| Max Output | 150W Max • 100W RMS @ 5% THD |
| Supply | AC: 220–250V • DC: 12V (Battery) |
| Inputs | 5 Mic, 2 AUX |
| Tone Control | Bass & Treble ±10dB |
| Speaker Out | 4Ω, 8Ω, 16Ω, 100V |
| Frequency | 50Hz – 15kHz ±3dB |
| FM Tuner | 88MHz – 108MHz |
| S/N Ratio | ≥ 60dB |
| Output (Pre) | 200mV / 600Ω, Line TV: 1V / 1kΩ |
| Digital Player | USB, SD/MMC, FM, Remote Control |
| Dimensions | 410 (W) × 330 (D) × 140 (H) mm |
| Weight | 11.25 Kg Approx. |

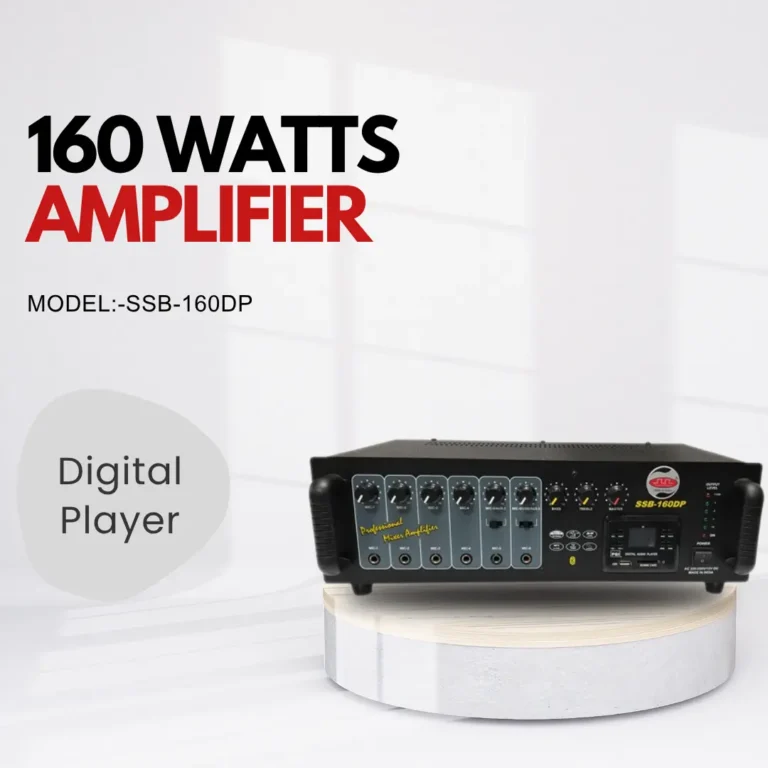

Model:-160 Watts
The 160 Watt Amplifier by SuperSync is engineered to meet high-performance audio demands in schools, religious halls, and public institutions. Supporting 100V line output, it delivers wide-area sound coverage with excellent clarity. Equipped with 6 microphone inputs and 2 AUX inputs, it offers maximum connectivity for announcements, background music, or bell systems. Compatible with automation units like SB-204 and WB-06, it allows seamless scheduling. Its rugged design, built-in USB/SD MP3 player, FM tuner, and remote control ensure flexibility and ease of use. With AC & 24V DC dual power support, it remains functional even during power cuts, making it highly reliable.
| Specification | Details |
|---|---|
| Power | 160W Max, 120W RMS @ 5% THD |
| Supply | AC: 240V • DC: 24V (Battery) |
| Inputs | 6 Mic, 2 AUX |
| Tone Control | Bass & Treble ±10dB |
| Speaker Out | 4Ω, 8Ω, 100V |
| Frequency | 50Hz – 15kHz ±3dB |
| FM Tuner | 88MHz – 108MHz |
| S/N Ratio | ≥ 60dB |
| Output (Pre) | 200mV / 600Ω |
| Digital Player | USB, SD/MMC, FM, Remote Control |
| Dimensions | 465 (W) × 330 (D) × 140 (H) mm |
| Weight | 12.25 Kg Approx. |

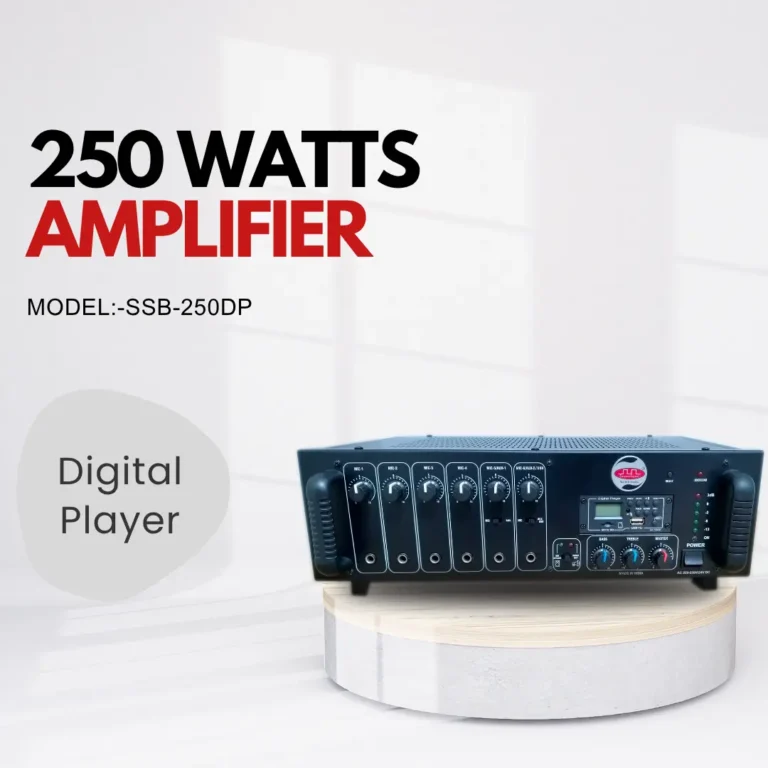

Model:-250 Watts
SuperSync’s 250 Watt Amplifier is an ultra-powerful and feature-rich amplifier built for demanding environments like large school campuses, religious gatherings, and industrial PA setups. With 300W peak and 250W RMS output, it powers multiple high-wattage 100V line speakers effortlessly. Featuring 6 Mic inputs, 2 AUX, and 1 Line-in, it’s ideal for large-scale announcements and devotional audio. Built-in USB/SD digital player with FM radio and remote ensures full media control. It runs on both AC and 24V DC (2x12V battery), making it perfect for areas with unreliable power. Rugged and highly dependable — this amplifier delivers strength, clarity, and flexibility.
| Specification | Details |
|---|---|
| Power | 300W Max, 250W RMS @ 10% THD |
| Output RMS | 220W @ 5% THD |
| Power Supply | AC: 220–250V • DC: 24V (2x12V Battery) |
| Inputs | 6 Mic, 2 AUX, 1 Line |
| Tone Control | Bass & Treble ±10dB |
| Speaker Out | 4Ω, 8Ω, 70V, 100V |
| Frequency | 50Hz – 15kHz ±3dB |
| FM Tuner | 88MHz – 108MHz |
| S/N Ratio | ≥ 60dB |
| Pre-Amp Out | 200mV / 1kΩ, Line TV 1V / 1kΩ |
| Digital Media | USB, SD/MMC, FM, Remote Control |
| Size (mm) | 530 (W) × 344 (D) × 155 (H) |
| Weight | 16.7 Kg Approx. |

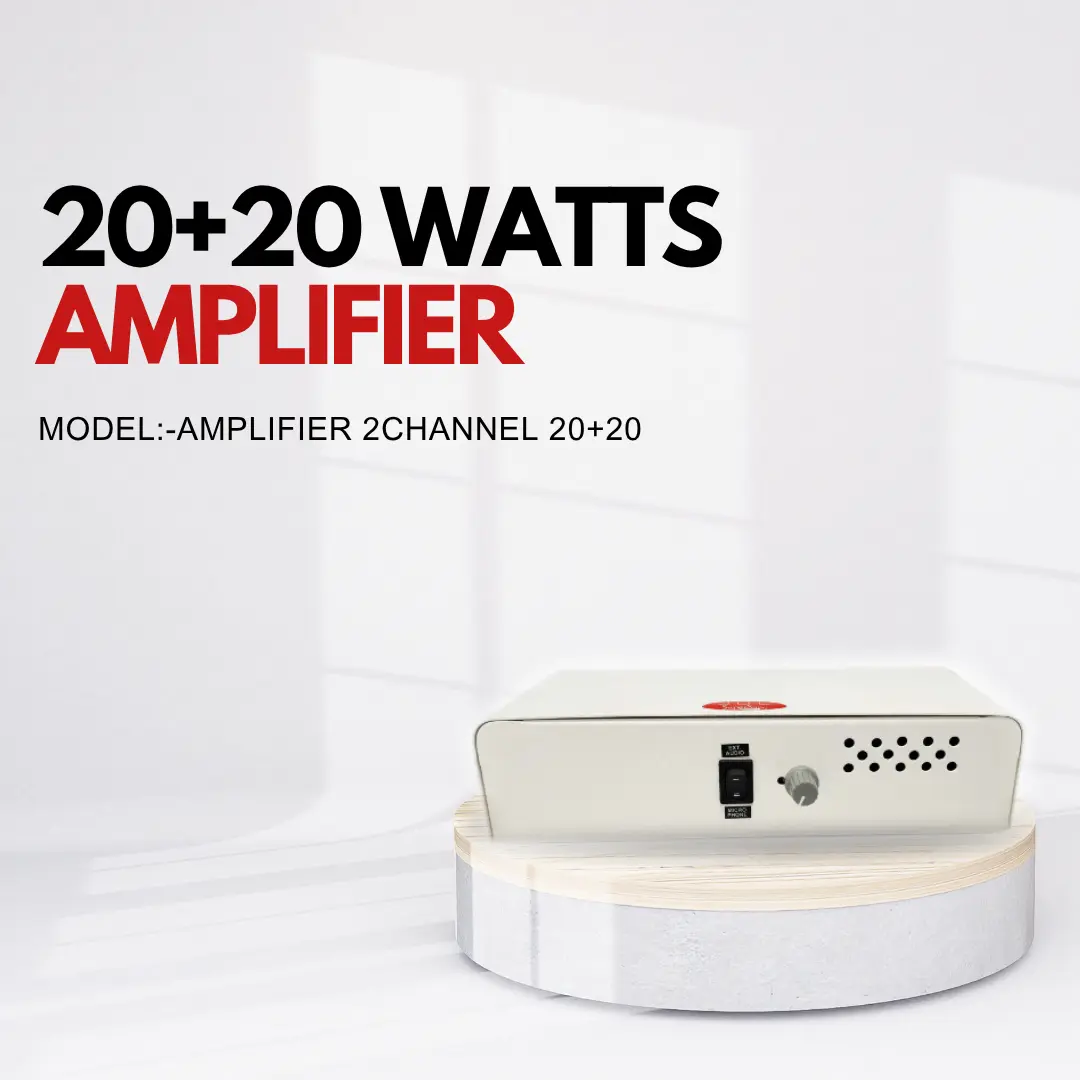

Model:-20+20 Watts
SuperSync’s 2 Channel 20+20 Watt Amplifier is ideal for classrooms, offices, or small halls. This compact unit delivers crisp, distortion-free audio and supports 100V line speakers. It’s compatible with bell timers like WB-06 and SB-204, making it perfect for scheduled announcements and bell rings. With dual output channels, it ensures even sound distribution and easy integration with column or ceiling speakers. The amplifier is energy-efficient, easy to install, and reliable for daily use. Whether it’s school bell tones or background music, this model delivers clean, clear sound every time.
