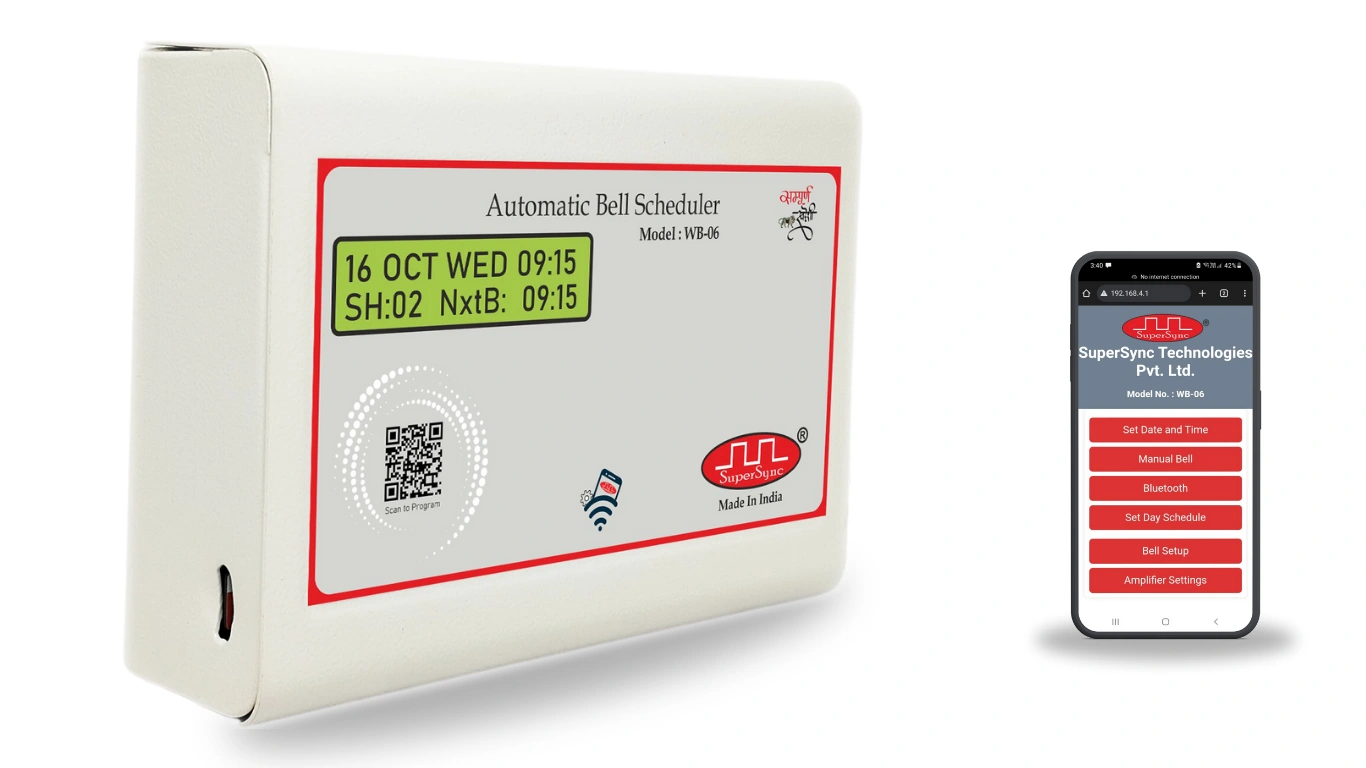

Model:-Wb-06
Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
Product video

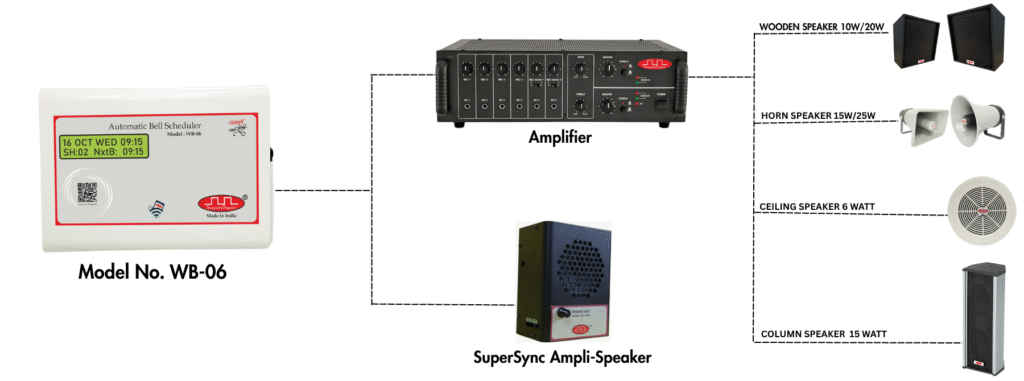

Connection
feature's
| S.No. | Feature | Description |
| 1 | Programming Interface | Wi-Fi enabled; can be programmed using a mobile, laptop, or tablet through the browser-based interface (no software installation needed). |
| 2 | Daily Bell Capacity | Supports up to 50 bell schedules per day, suitable for complex school routines. |
| 3 | Multiple Schedules | Up to 8 independent schedules can be programmed (each with 50 bells) for different days or events (e.g., Summer, Winter, Exam). |
| 4 | Audio Playback | Plays MP3 format audio files stored on a connected microSD card for bell tones or custom announcements. |
| 5 | Bluetooth Music Playback | Supports Bluetooth audio streaming for music or announcements (optional use, does not affect bell scheduling or ringing). |
| 6 | Output Connections | – 220V AC Output for amplifier power control – 6.35mm AUX (1/4″ jack) for sending audio signal to amplifier AUX IN. |
| 7 | Display | 16×2 character LCD display shows the current time, active schedule, and bell preview/diagnostics. |
| S.No. | Feature | Description |
| 8 | Storage (microSD) | Supports microSD cards up to 16GB for storing and playing bell tones or music. |
| 9 | Input Power Supply | Operates on 220V, 50Hz AC mains supply. |
| 10 | Output Compatibility | Compatible with any branded amplifier-speaker system via standard AUX IN interface. |
| 11 | Holiday & Weekly Off Setup | Supports weekly off configuration; schedule switching allows easy management of holidays or no-class days. |
| 12 | Manual Bell Ringing | Manual bell preview/test bell sound available on webpage to verify bell sound and output without waiting for the schedule trigger. |
| 13 | Installation Type | Compact design; wall-mountable or table placement supported. |
| 14 | User Interface | Simple menu-driven setup via web interface. |

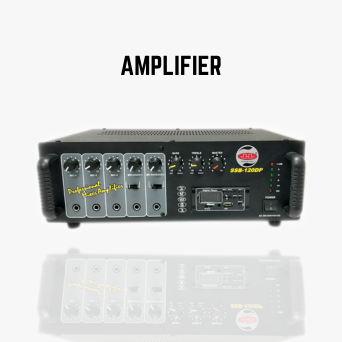

Amplifier
Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

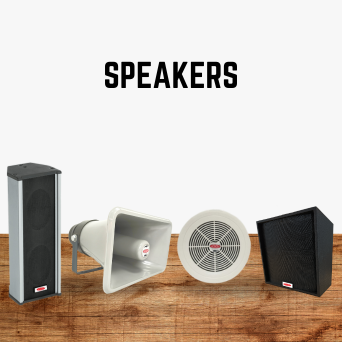

Speakers
Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
What is Lorem Ipsum?
Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
